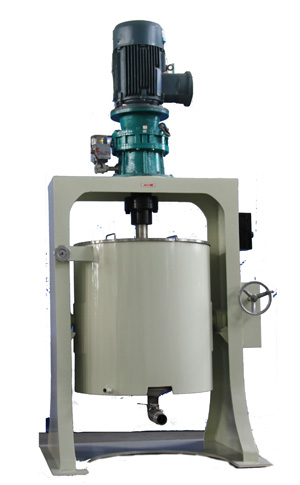

LQM Horizontal Ball Mill

Product description
The vertical ball mill is suitable for grinding and dispersing coarse and hard particles or materials with false thickening. The material size of the material milled by the vertical ball mill is uniform. The particles are fine and the vertical ball mill can also mix several materials evenly together. , Widely used in coatings. Paints. Rubber. Abrasives. Ceramics. Ore. Pulverized coal. Metal powder. Carbide. Magnetic materials.
Main features and performance
1. There is no dead angle in the grinding cylinder, the homogenizing effect is good, the equipment is small, and the operation is simple;
2. The special agitator shaft structure increases the medium collision rate and improves the grinding frequency;
3. The production regulation is easy to control and has strong adaptability to raw materials with various properties. ;
4. double cylinder, special cooling circulation path, the cooling performance is good, quick feed, easy to clean.
Technical Data Sheet
Model
LQM200
LQM300
LQM500
LQM1000
Motor power Kw
7.5
11
22
37
Shaft speed r/min
132
132
63
50
Grinding ball diameter mm
8~10
Mill barrel capacity L
200
300
500
1,000
Ball weight (ball) Kg (recommended value)
300~350
500~650
1000~1500
2000~2800

If necessary, please contact us
