JF biaxal high speed mixing disperser


JF biaxal high speed mixing disperser
Product description

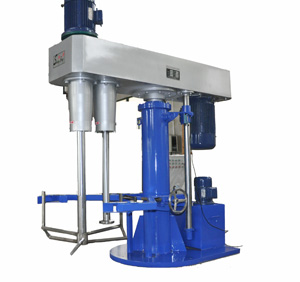

This machine is an efficient mixing equipment, suitable for the stirring of high-viscosity materials, can quickly disperse the material. Dissolve. Mix evenly, apply to coatings. Ink. Pigments and other related chemical products.
Main features and performance
1. Full hydraulic drive. Both the agitator shaft and the dispersive shaft can be easily achieved stepless speed change with a large speed ratio;
2. Centering. High viscosity and thixotropy materials have a good adaptability;
3. Due to stirring. Dispersion at the same time , Can get the ideal effect;
4. Can freely start or stop any of the two axes, to achieve the special requirements of the operation.
Technical Data Sheet
specification
JF15
JF37
Distributed axis motor power (KW)
11
30
Stirring shaft motor power (KW)
4
7.5
Dispersion shaft speed (r/min)
0-1200
0-1200
Stirring shaft speed (r/min)
63
63
Lift height (mm)
800
1100
Mixing diameter (mm)
700
900
Dispersion plate diameter (mm)
200
300
Weight (Kg)
1100
2100




If necessary, please contact us
