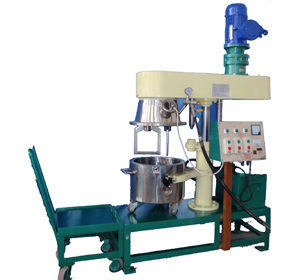

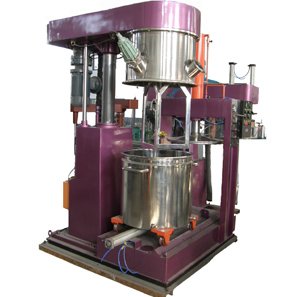

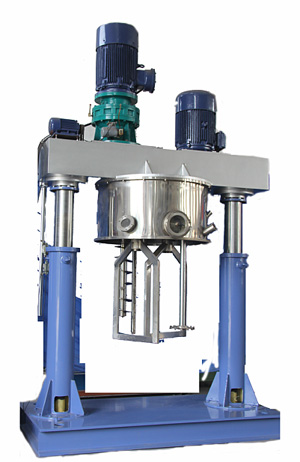

product description
This machine is a set of reaction. Mixing. Mixing. Disperse into one efficient. Multipurpose equipment. Suitable for all industries: Liquid-Liquid. Solid-Liquid. Paste-Paste. Powder-paste material density. Proportional disparity. From low viscosity to high viscosity (1.5 million Cps) production process.
Main features and performance
1. The (trapezoidal) soft seal between the mechanical seal and the kettle allows the material to be operated under vacuum;
2. The kettle body can be electrically powered. Steam. Water and oil are heated cyclically. The unique temperature detection device on the drive shaft ensures that the temperature error of the material is less than ±1 degree. It can be heated or cooled with a jacket.
3. The inner wall of the kettle is a large-scale vertical lathe finishing machine, and then it is automatically polished by a large polishing machine to ensure planets. The movable knife on the shelf (when rotating, the material on the inner wall of the kettle is completely scraped off);
4. The box type stirring paddle in the kettle is rotated at the same time as the revolution, so that the material flows up and down and around, so that it can be a short time The mixing (mixing) effect is achieved in the interior, and the effect is more than ten times that of the ordinary mixer.
5. The revolution of the stirring paddle in the kettle. The rotation and the scraping wall stirrer adopt the frequency conversion speed regulation.
Technical Data Sheet
Model
XJ-50
XJ-100
GJ-50
GJ-100
Spindle motor
30Kw
45Kw
15Kw×2
22Kw×2
planet
3 Kw
4 Kw
4 Kw
5.5 Kw
Spindle speed
132r/min
132 r/min
1450 r/min
1450 r/min
Planetary wall-scraping speed
25r/min
25r/min
10r/min
10r/min
Kettle capacity
500L
1000L
500L
1000L

If necessary, please contact us
